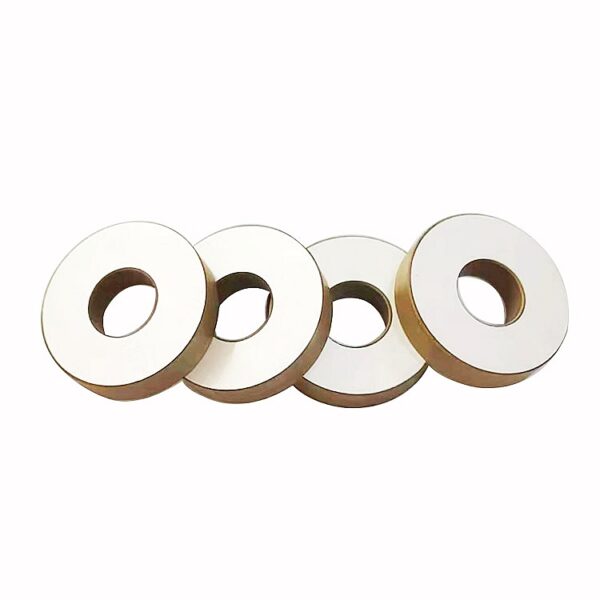

Ultrasonic Piezo Ring 50x23x6.5mm

Dimension: Φ50 × Φ23 × 6.5 mm

Material: PZT82

Resonant Frequency Fr.: 32 khz ± 2khz

Couping Factor KP 0.53

Capacitance C: 2170±15%pf

Dielectric Loss tgδ ≤ 0.3%



SKU: A050 Category:

Ultrasonic Piezo Ring 50x23x6.5mm



Ultrasonic sealing is an excellent prerequisite for processing coated cardboard materials. Among them, ultrasonic sealing also has a unique advantage, that is, the ultrasonic itself will be directly transmitted to the (internal) sealing layer through a different sheet structure. Ultrasonic welding is a brand-new ultrasonic sealing technology for objects such as containers and junction boxes. This torsion process, developed and patented by us, redefines the way of ultrasonic sealing and welding.
